WBeams XR - the first in-depth engineered Rails on the market.
Designed for your XR and optimized for the Ride.

Besides the Tire,  Rails probably change a Onewheels feeling the most. Riding on One tire on a longitudinal board stance will always limit stability and clearance. This is exactely what the W-shape offers a great help for: the inwards tilted footpads not only lock your feet, but as well drop your stance for increased stability, while still maintaining clearance.
As passionate Engineers, we were not sadisfied with other rails on the market. So we took all our experience and knowledge to design and realize our tech and quality optimiced Rails. With the help of FE- and Topology-optimization we increased strength significant while still reducing weight. And in addition to that we added a lot of features to even further bump value into our WBeams.

Features:

  • W-shape | 3° tilt, 12mm lower stance at same clearance
  • 7075-T6 Aluminium | made of the highest grade Aluminium
  • Structurally optimiced | 10 times tougher than stock, 16% lighter than competitors
  • Reinforced Threads | Stainless Inserts and maxed out depth
  • Flat Fender Mounts | any Fender is mountable with simple spacer
  • Cable Clamps | secure cables without compromising strength
  • Cable-Channel | designed to route bigger cables (for VESC or VNR)
  • Service Holes | additional holes offer the ability to re-tighten inner hub bolts



Take the chance and add Beam Guards to protect your WBeams:
- Midnight Black
- Clear
- Both (1set Black + 1Set Clear)
- Blem Black (manufacturing error: printed at the outside)



FAQ:

Will there be a "tilt kit" to compensate nose-down because of the 3° tilt?
No! It is already possible to re-calibrate your controller using nRF Connect. But we will soon offer a service, if you don't dare doing it yourself.
Which Bumpers can be used with WBeams?
WBeams are compatible with each and every Onewheel XR Bumper on the Market.
Why do i need to use a Spacer for the Fender?
The Fender Mounts are flat, but 12mm lowered, thus especially bigger tires will rub inside the Fender. We will soon offer data for printable fender spacers to compensate for that. Of course we will sell printed parts on demand.
Will I need Spacers for open Fenders like Dirt Flaps or Flight Fender?
No, those fit perfectly fine without any Spacer.

Why Cable Clamps? The cool Kids don't use that!
Cables should be hold in position because dangling, loose cables will eventually break, causing nosedives or even brick your Onewheel forever - And well, the "cool" Kids probably kill their Onewheels prematurely anyways.

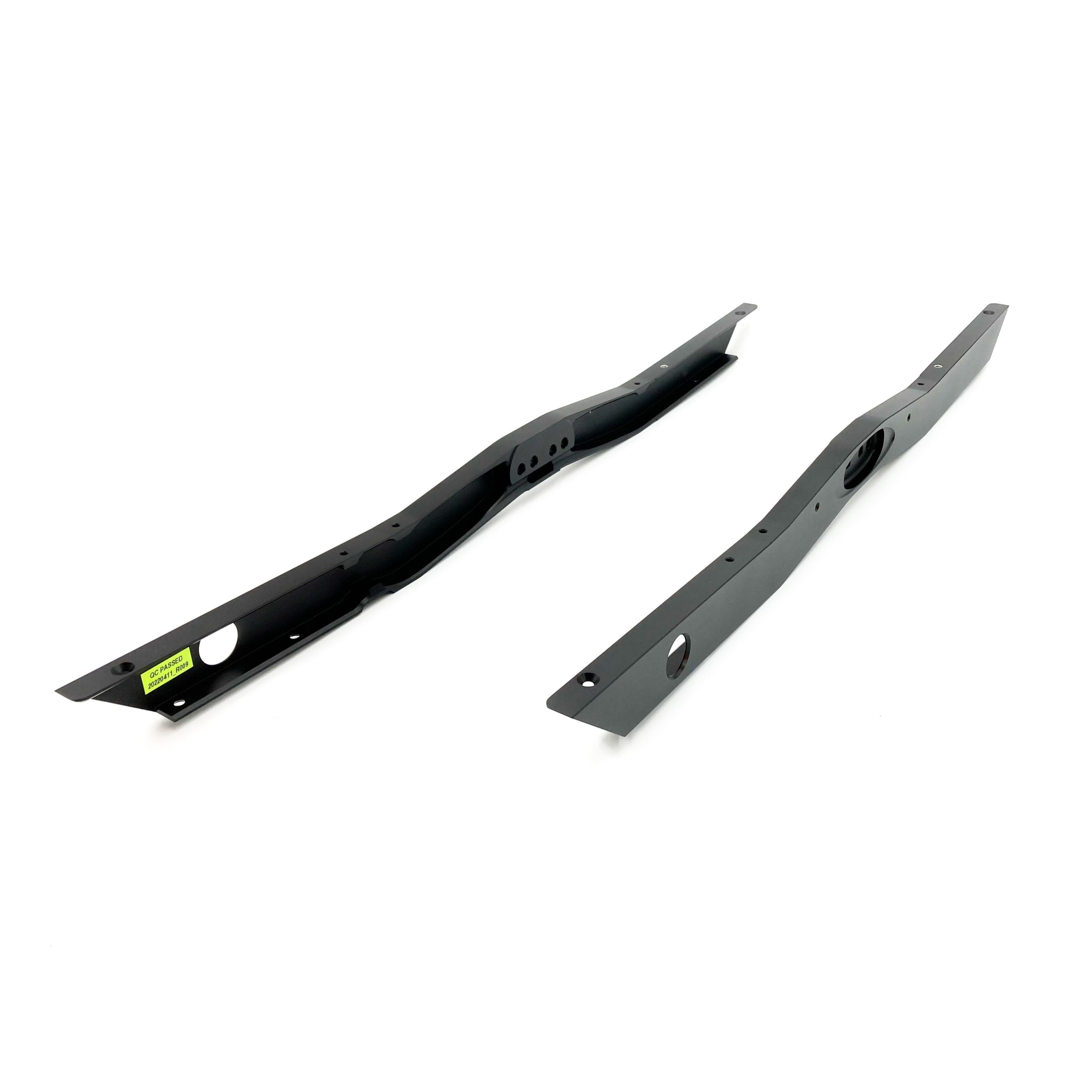

WBeams XR

PriceFrom €479.00
VAT Included
    • Brand       4820 Obligatory
    • Material   EN AW-7075 T6 Aluminium
    • Options    3 Anodized Colours
    • Weight     790g/Set
